FEATURES
1. Approach: bring the equipment/hubs closer to the coupling, in order to obtain a value close to the “S” dimension indicated in the Installation Manual.

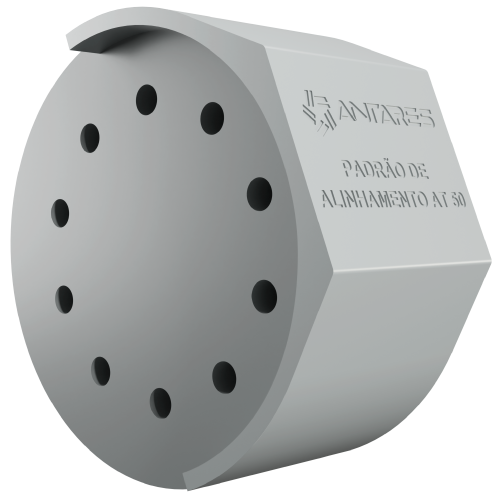

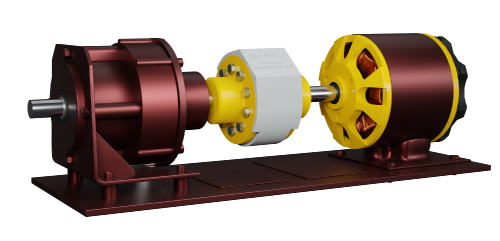

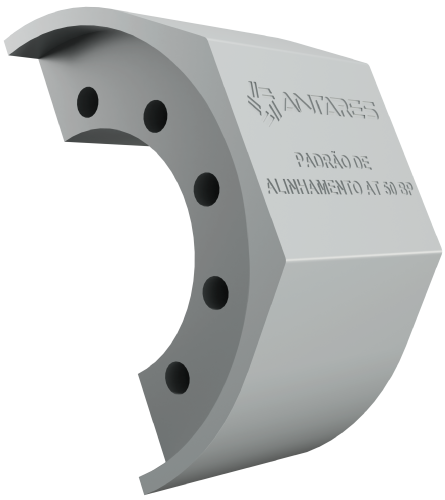

2. Positioning: installation of the pattern between the cubes, ensuring support.
3. Tabs: checking and correcting radial and vertical misalignment.
4. Verification: checking angular misalignment and necessary adjustments.
5. Fixing: with the hubs aligned, fix the motor to the base.
6. Finalization: after fixing the engine, remove the screws and confirm the alignment.
